AK Smart Space
Assembly time under 15 minutes
Easy setup and dismantling
Up to 27 m² of interior space
Individual configuration
Size S availabe from 99.900 * EUR
Monthly rent from 4.520 * EUR
* plus VAT

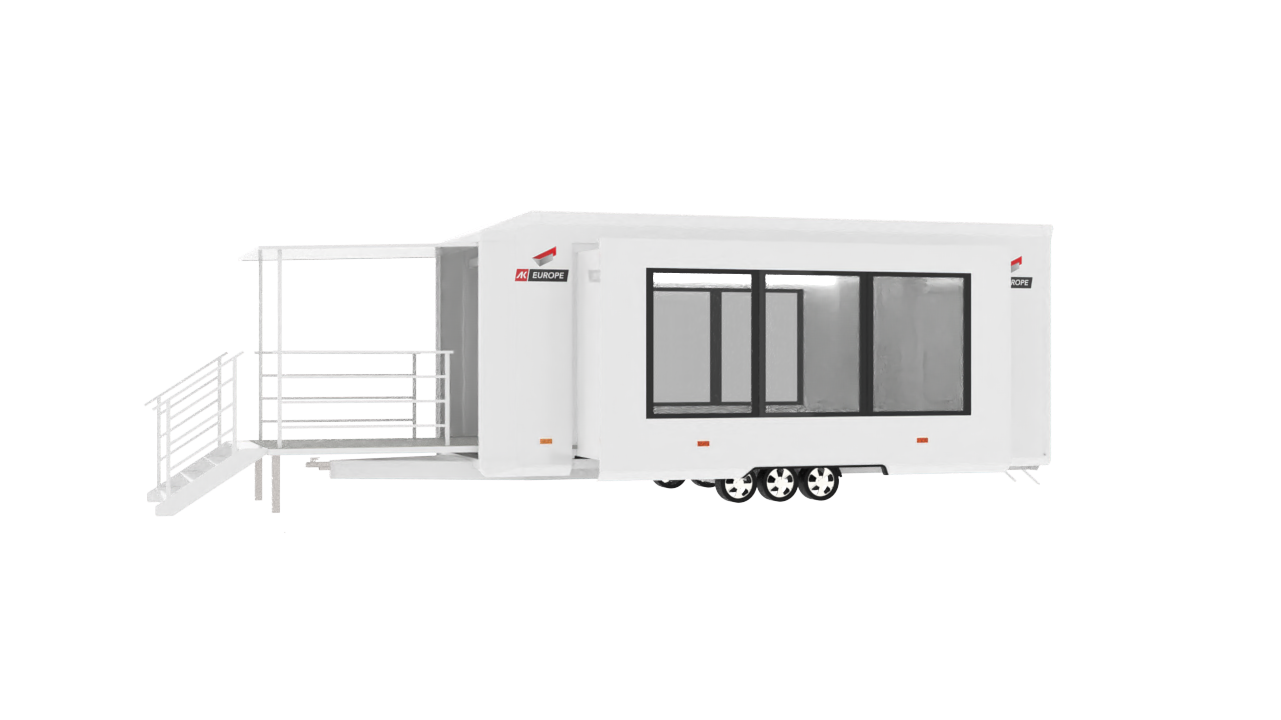

The AK Smart Space is available in two different sizes ( S and L ) it has a total space from 23m² or 27m². Thanks to the two automatic slide-outs the trailer can be built up in only a couple of minutes and personalised to your needs. The technical equipment as well as the design can be customized, according to the customers wishes. The entrance stairs of the unit can be flexibly mounted from the right, left or center, depending on the location.
come closer and have a look
CUSTOMER TESTIMONIAL: SX Consulting
As SX Consulting, we have already successfully completed several projects with AK Europe, including the AK Smart Space. The collaboration was professional from start to finish, marked by high flexibility and adaptability. We were particularly impressed by the quality of the customized solutions, which were always perfectly tailored to our needs. We are very much looking forward to future projects with AK Europe.
Tobias Stöhr / SX Consulting
The AK Smart Space is the perfect solution for companies driving small promotion tours with their brand. The trailer is built up easily and fast and can be customized within a short period of time.
Flexible Usage
The AK Smart Space can be moved quickly and easily with a car and is therefore flexible to use. In just 15 minutes the unit is particularly efficient and easy to set up. In addition, the vehicle can be supplied with electricity both externally and independently by a generator, thus guaranteeing complete independence.
Individual configuration
The AK Smart Space can be equipped and branded as desired to meet your individual needs. We always cater to your wishes in both room planning and general deployment planning.
Modern Technologies
Thanks to the four lifting rams, the AK Smart Space stands completely straight, even on uneven surfaces. The electric slide-outs generate a spacious and air-flooded space.
Construction in detail
A | Base vehicle model | Knott 3.5t |
B | Total permitted weight(kg) | 3500 |
C | Interior surface of the showroom (m²) | 27m² (L) |
D | External vehicle length, closed (mm) [incl. Drawbar] | 7940 [9430] (L) |
E | External vehicle width, closed (mm) | 2550 (L) |
F | External vehicle height, closed (mm) | 3280 (L) |
G | External vehicle width, open (mm) | 4520 (L) |
H | Internal vehicle length (mm) | 6400 (L) |
I | Internal vehicle width, open (mm) | 4430 (L) |
J | Internal vehicle height (mm) | 2440 (L) |
K | Internal slide-out length (mm) | 5420 (L) |
L | Internal slide-out height (mm) | 1950 (L) |
G | External vehicle width, open (mm) | 4520 (L) |
H | Internal vehicle length (mm) | 6400 (L) |
I | Internal vehicle width, open (mm) | 4430 (L) |
J | Internal vehicle height (mm) | 2440 (L) |
K | Internal slide-out length (mm) | 5420 (L) |
L | Internal slide-out height (mm) | 1950 (L) |
